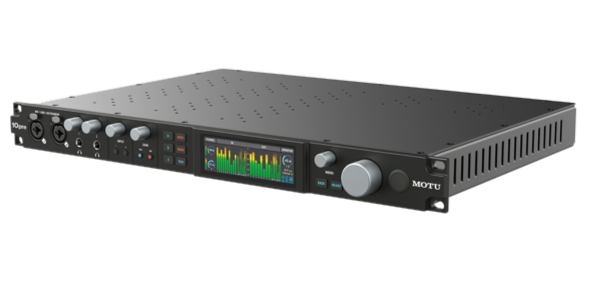

MOTU 10pre Thunderbolt 4/USB 4 Audio Interface

The MOTU 10pre is a professional 26-input/28-output Thunderbolt 4 / USB4 audio interface that delivers world-class sound quality, ultra-low latency, and complete AVB-network integration for studios and live setups. Connecting easily to any Mac, PC, or iOS device, the 10pre combines pristine 118 dB-dynamic-range mic preamps, ESS Sabre32 DAC technology, flexible DSP mixing, and advanced routing - all in a compact 1U rack-mount chassis.

Connectivity and Performance

Featuring Thunderbolt-compatible USB4 C-to-C connectivity (backward compatible with USB 3 and USB 2), the 10pre supports up to 256 audio channels (128 in / 128 out). Class-compliant firmware ensures plug-and-play operation with all major DAWs, delivering sub-1.9 ms round-trip latency (96 kHz, 32-sample buffer). A second Thunderbolt port allows you to connect additional peripherals such as drives, monitors, or docks.

Mic/Line/Instrument Inputs

The ten XLR/TRS combo inputs feature high-performance mic preamps offering 118 dB dynamic range, -129 dBu EIN, -114 THD+N, and up to +74 dB of gain for ultra-clean recording.

• Rear panel: Eight inputs (1-8) for permanent studio wiring
• Front panel: Two inputs (9-10) for quick session access
• Dedicated inserts on channels 1-2 enable outboard processing integration

Front-Panel Control and Monitoring

Additional control-room tools include talkback, A/B/C monitor select, mute, and mono sum buttons. All functions are remotely controllable via computer or mobile device.

Rear-Panel I/O

• 8 x Mic/Line/Instrument Inputs (Combo XLR/TRS)
• 2 x TRS Send/Return Inserts (for Inputs 1-2)
• 8 x Balanced TRS Line Outputs with ESS Sabre32 32-bit DACs (125 dB dynamic range, -114 THD+N)
• Dual ADAT Optical I/O (switchable to S/PDIF)
• BNC Word Clock In/Out/Thru
• 2 x Thunderbolt 4 / USB4 Ports
• 2 x AVB Ethernet Ports for networking
• All analog I/O can be calibrated in 1 dB steps, and all line outputs are DC-coupled, perfect for controlling modular synths directly from your DAW.

AVB Networking

The built-in AVB switch allows up to eight MOTU interfaces (10pre, 848, 16A, etc.) to be networked via standard Ethernet cabling. Each 10pre can transmit and receive 128 audio channels over the network, with ultra-low latency across multiple devices and computers. Expand effortlessly with external AVB switches for larger systems - even over cable runs of hundreds of meters.

Mixing and DSP Effects

Powered by MOTU's 32-bit floating-point DSP engine, the 10pre delivers 64-channel mixing from any input source - interface channels, computer streams, network audio, or bus returns.

Using the included CueMix Pro software, you get:

• 26 aux buses, plus main, monitor, reverb, and solo buses
• 4-band double-precision parametric EQ and compression on all channels
• High-Pass Filter and Gate on every input
• Built-in reverb and Wi-Fi remote mixing from an iPad or iPhone
• Comprehensive Routing
• CueMix Pro provides drag-and-drop patching or a matrix view for routing any source to any destination - including DAW I/O, mixer channels, hardware outs, and AVB network streams. Split or duplicate any signal across multiple outputs with total flexibility.

Included Software

• CueMix Pro App (macOS, Windows, iOS)
• Low-latency Thunderbolt/USB drivers
• MOTU Performer Lite DAW
• 6 GB of loops and samples from Big Fish Audio, LucidSamples, LoopCloud, and MOTU

Key Features

• 26×28 Thunderbolt / USB4 interface with integrated DSP mixing and AVB networking
• 10 studio-grade mic/line/instrument inputs with transparent preamps
• Dual headphone outputs with independent mix control
• ESS Sabre32 DAC technology for pristine audio conversion
• 3.9-inch full-color TFT meter display
• Ultra-low latency (< 1.9 ms) performance
• Full CueMix Pro software suite included
• Expandable networking for multi-device AVB systems
